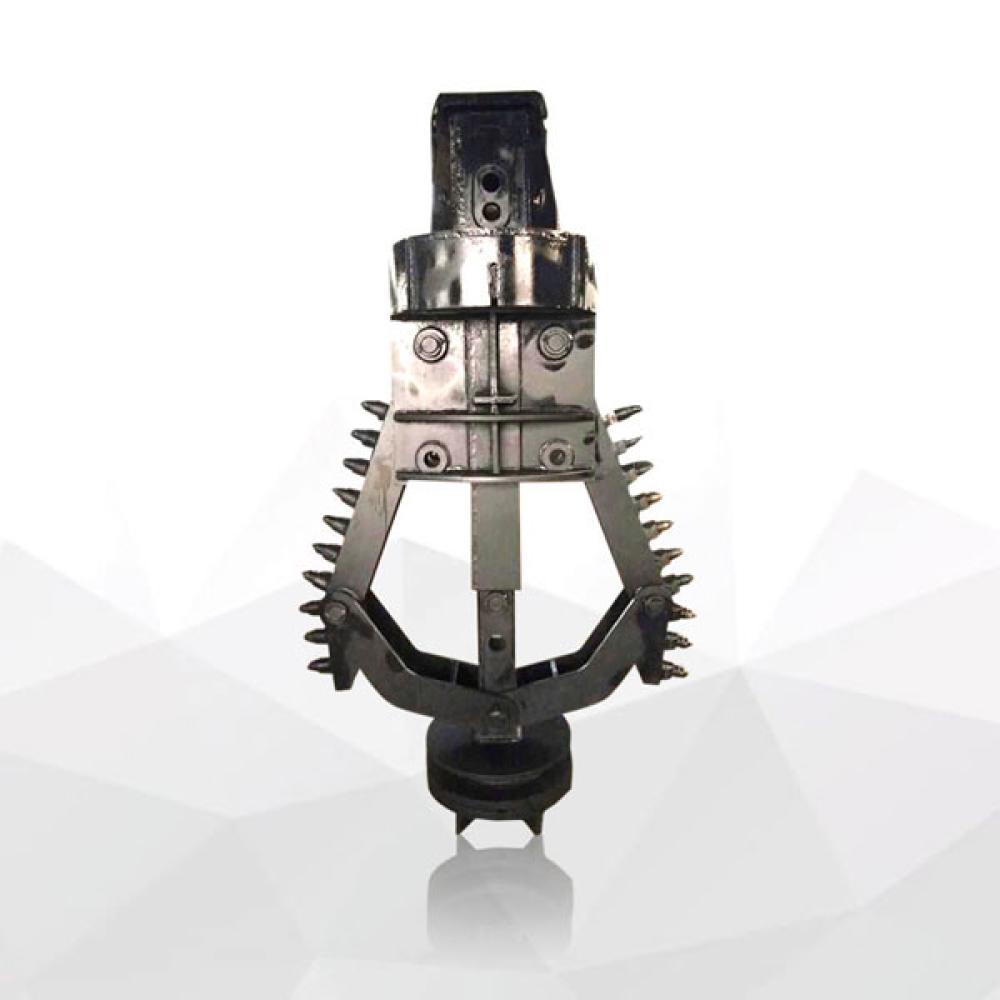

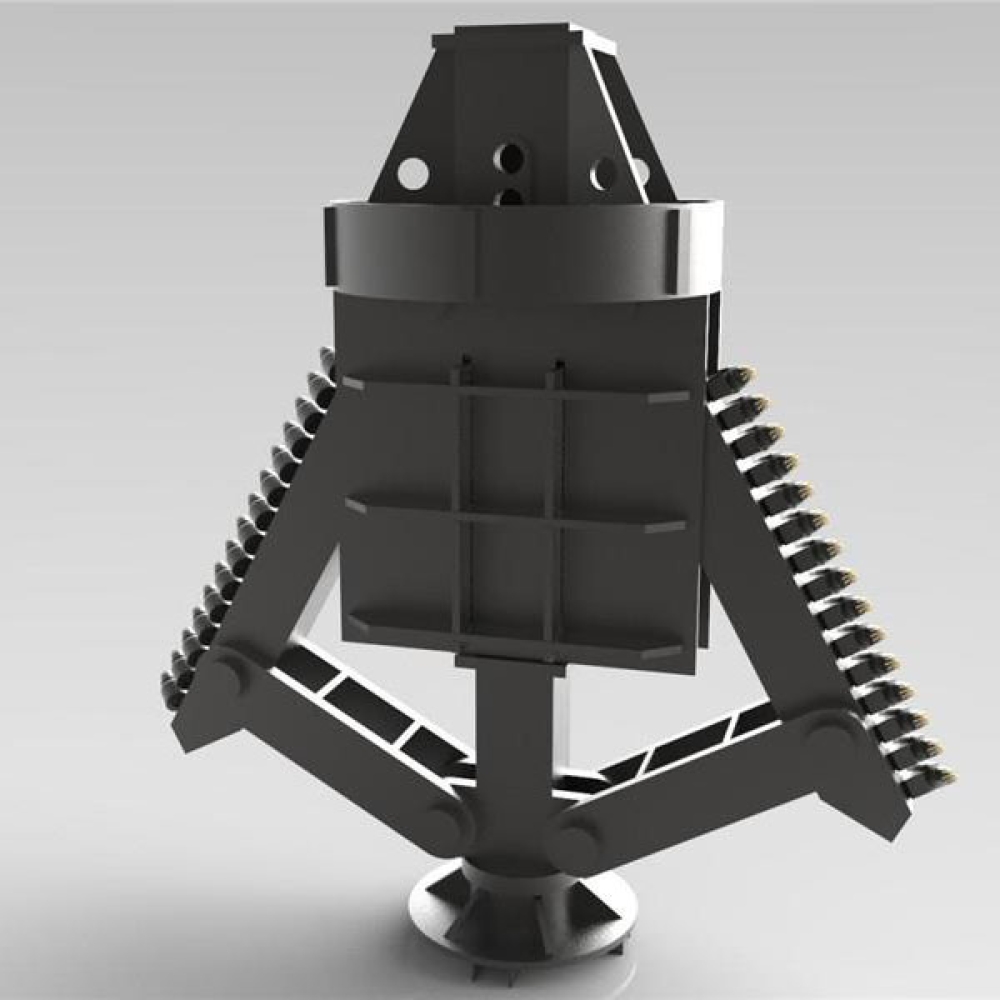

Belling Bucket

Applications:

1.The applicable layers of belling buckets are hard stratum, frozen soil and medium soft rock.

2.The belling bucket is usually used for enlarging the pile base when the soil is stable.

Features

1.Adjustable cutting arms can meet the specific requirements of different reaming diameters

2.After reaming the bore hole, convey spoil with drilling bucket or cleaning bucket

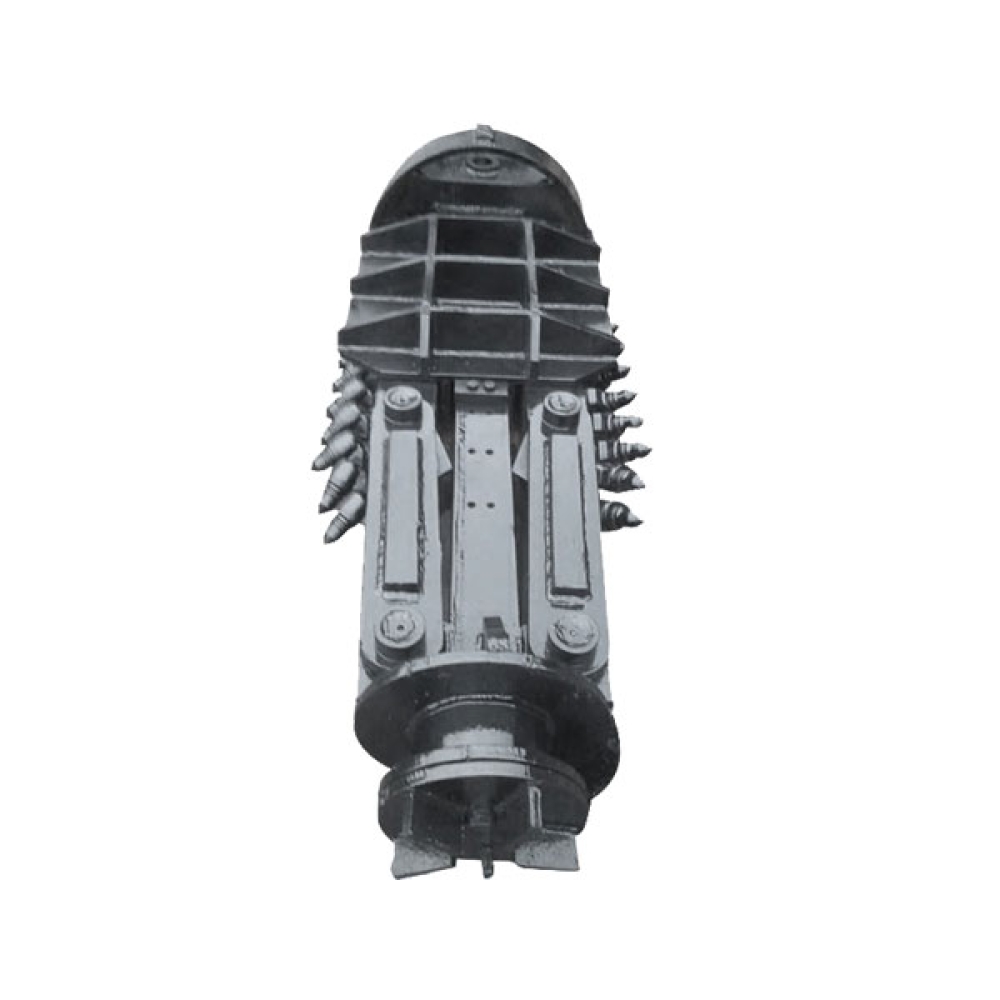

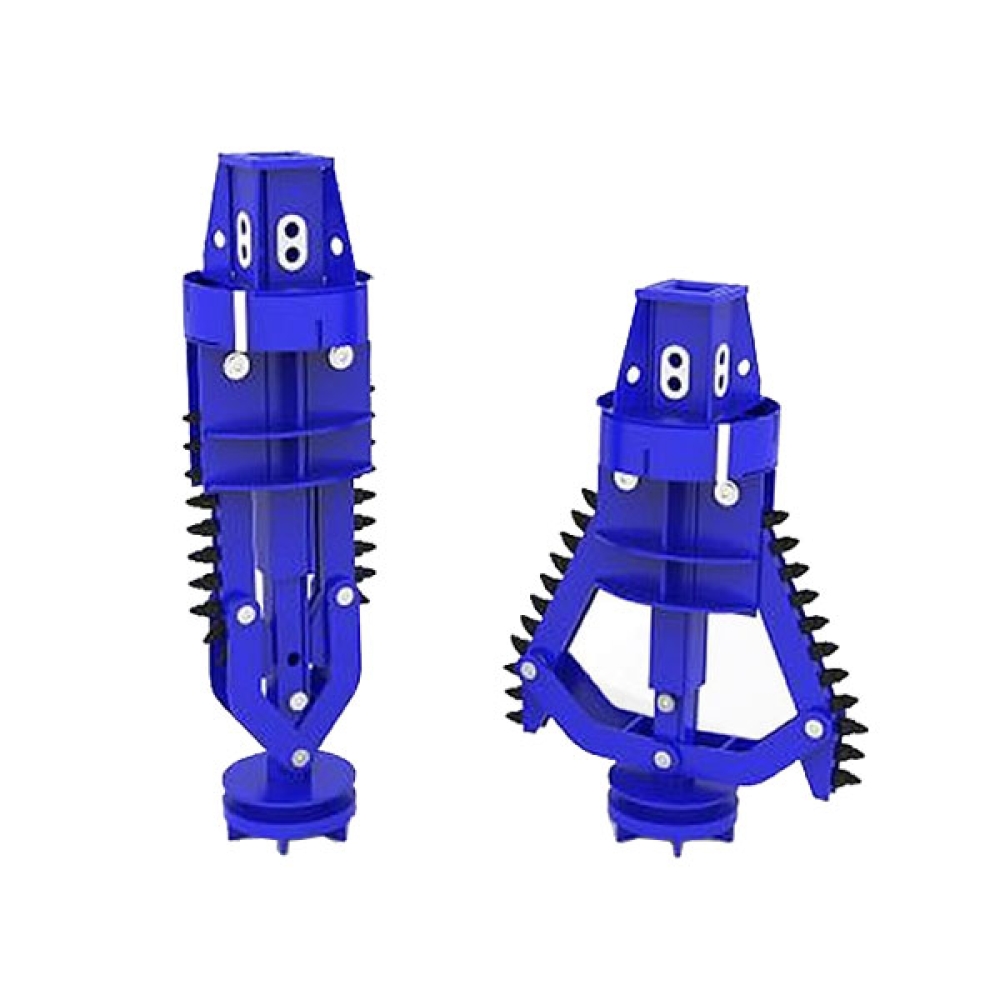

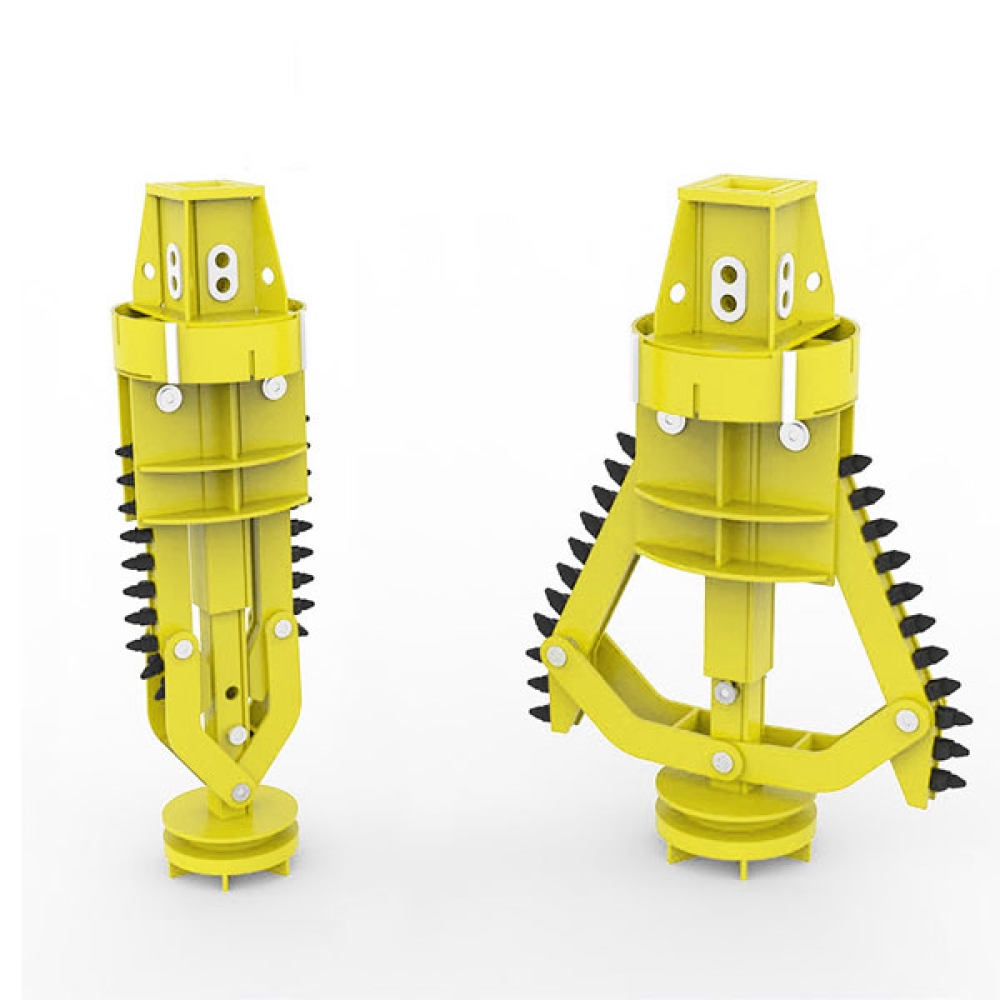

3.Cutting arms are easy to spread and retract

4.It is easy to maintain the box-type structure

Descriptions

1.Drilling buckets are mainly used for drilling water-bearing sandy soil, sludge, clay, muddy sub clay, sandy gravel, cobble, and weathered soft formation.

2.The bucket can be designed into cylindrical type and conical type according to bucket diameter, type of drilling rig and soil conditions.

3.The welding angle of bucket teeth can be designed according to formation conditions so that the drilling buckets can keep high efficiency of soil cutting amount in any formation conditions.

4.The bottom cover is made of high-strength Mn plate, and the cutting edge includes single-layer type and double-layer type.

5.The soil inlet also includes single-bottom type and double-bottom type.

Technical Parameters

Belling Bucket
Cutting Arms Diameter	Bucket HIT	Swing No	Limit Hole No	Teeth No	Reaming Multiples	Weight(KGS)
φ600--1200	3050	2	2	28	1.5-2.0	1190
φ800--1600	3100	2	3	28	1.5-2.0	1310
φ900--1800	3050	2	3	28	1.5-2.0	1500
φ1000--2000	3050	2	3	30	1.5-2.0	1650
φ1100--2200	3050	2	4	30	1.5-2.0	1880
φ1200--2400	3050	2	4	30	1.5-2.0	2350
φ1500--3000	4000	2	4	32	1.5-2.0	3600
Customizable Items:
Other cutting diameters likeΦ950, Φ1050mm can be customized.
Key component reinforce can be strengthened.
Swing type can be customized, double swing or triple swing.
Key box can be customized, 130130,150150,200*200 etc.
Limit hole quantity can be customized, more limit holes can be added to meet different reaming diameters.
