Applications:
1.Core barrel with double shells is used in gravel, boulder, medium rock or weathered rock.
  1. Professional Products
  2. Quality Guarantee
  4. Customer Trust
  5. One Year Warranty
  7. Send An Inquiry

Features

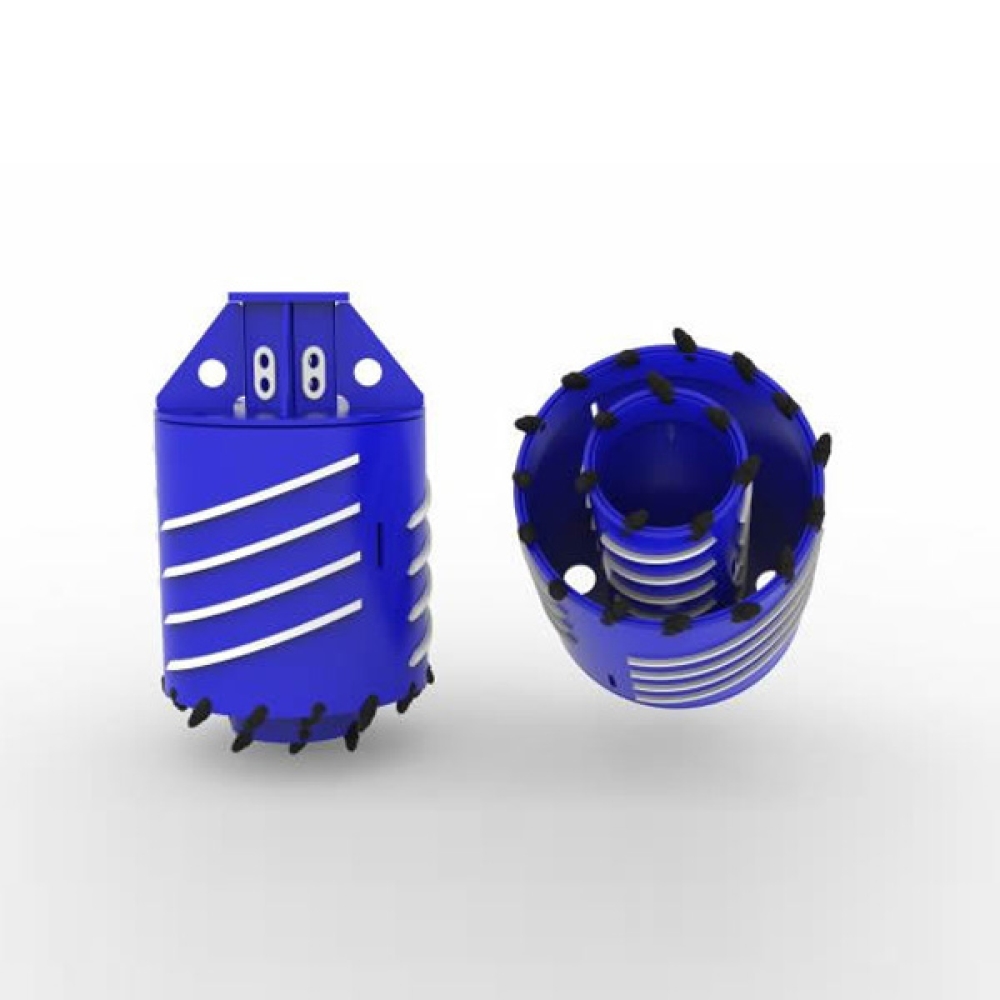

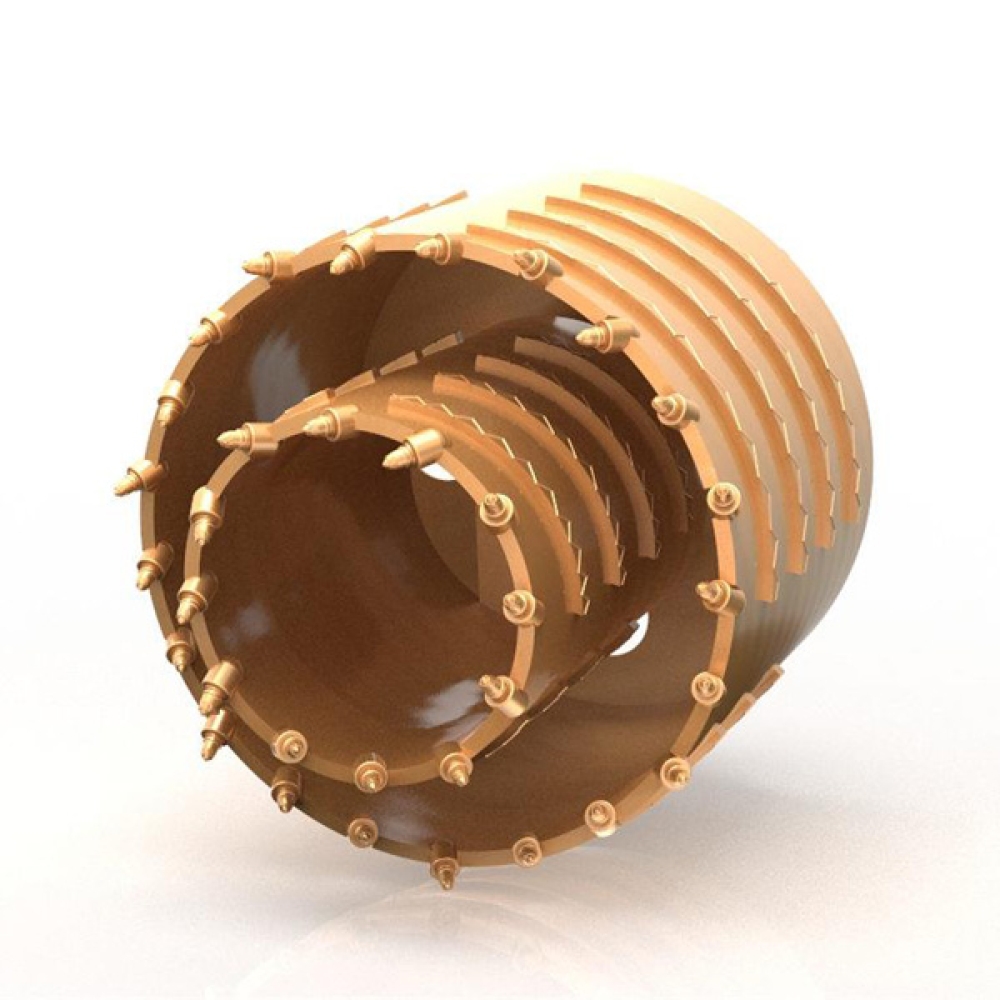

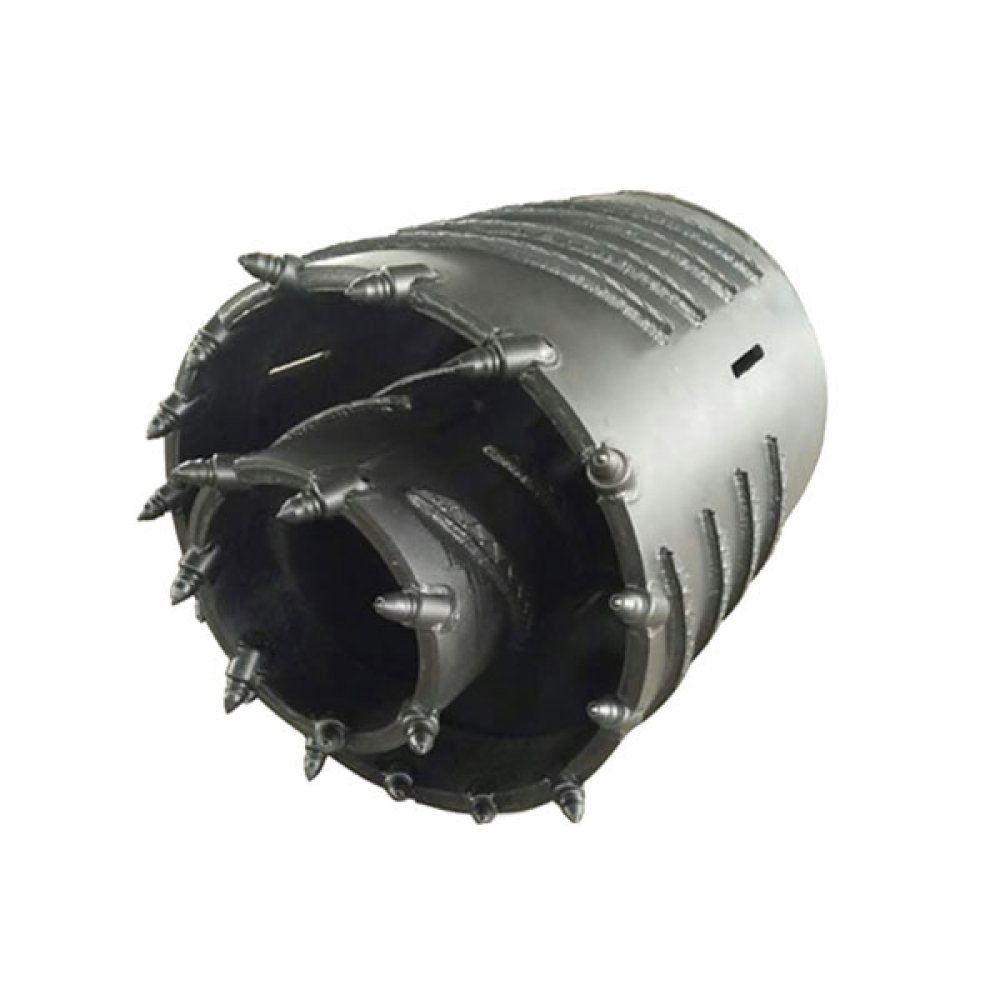

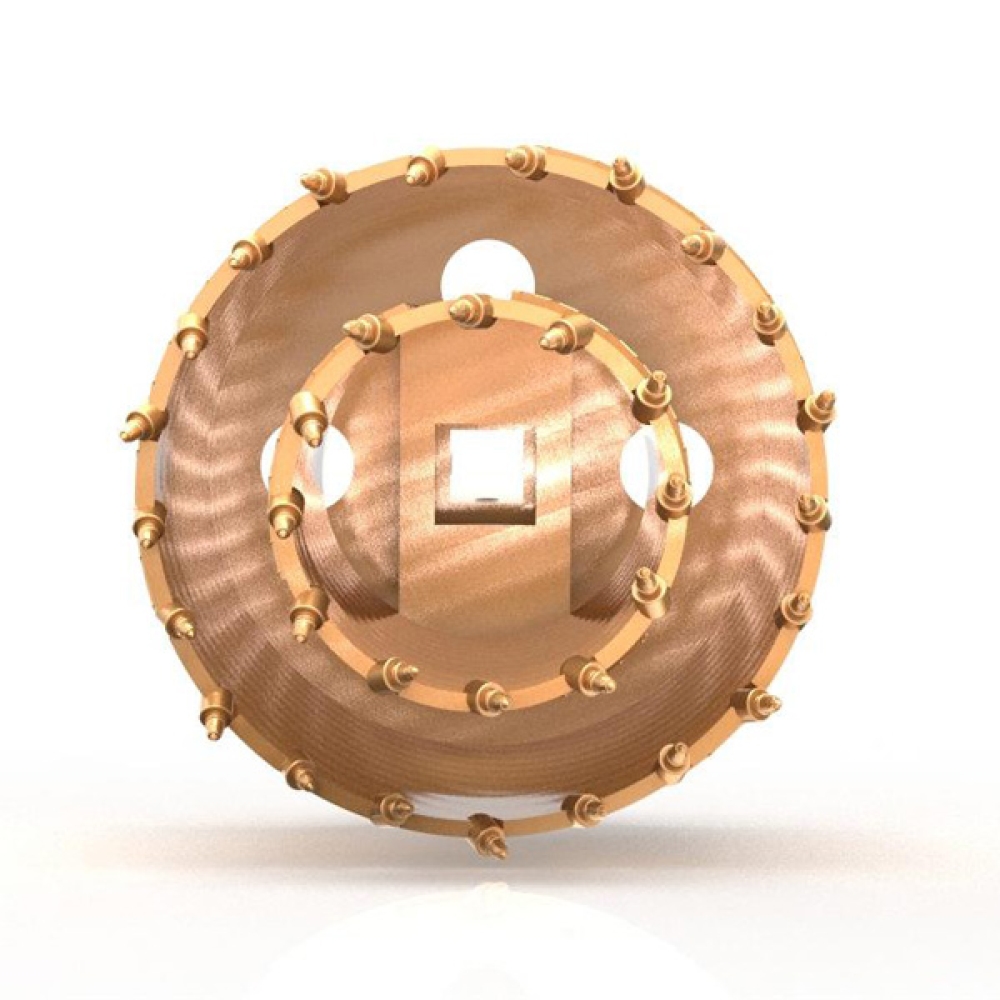

1.The inner shell starts drilling first, the outer shell follows.
2.The cutting rings are attached with 21-70 rock drilling bits, this design releases the internal stress of rock.
3.These rock drilling bits perform stage breaking and foundation drilling.

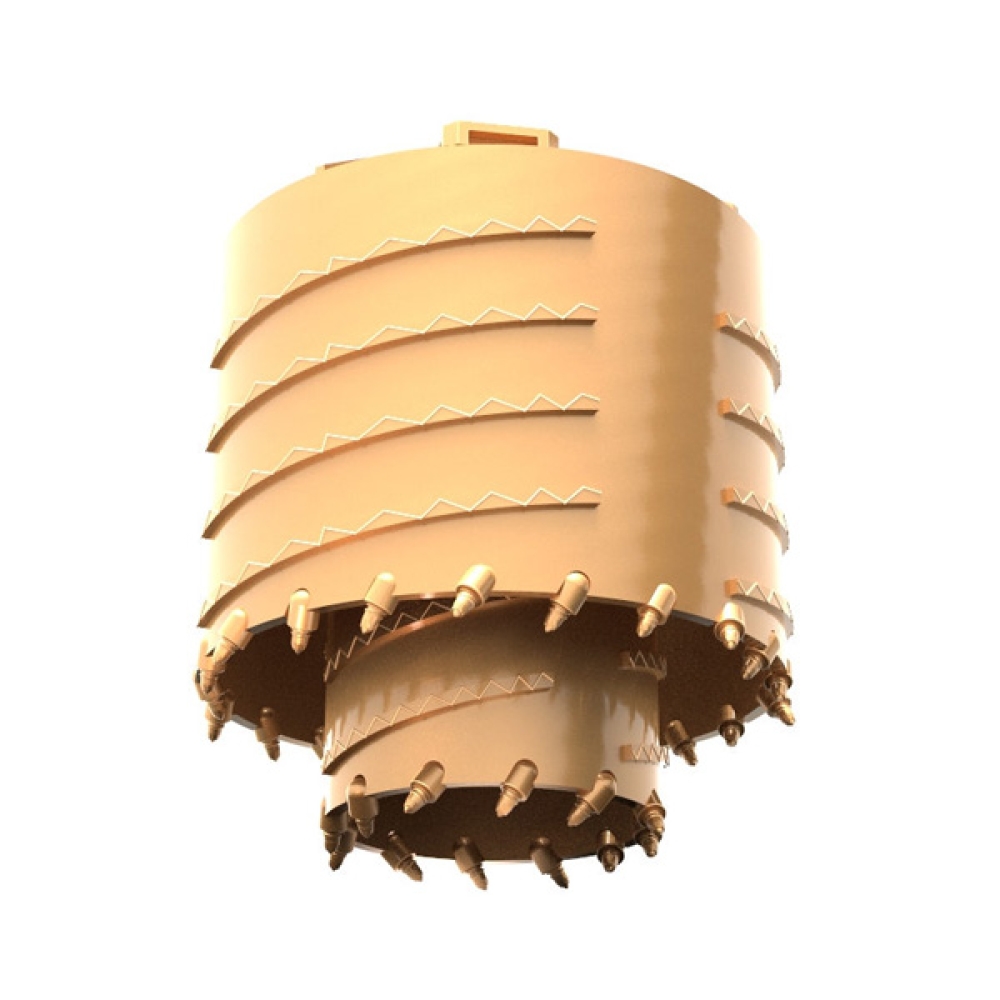

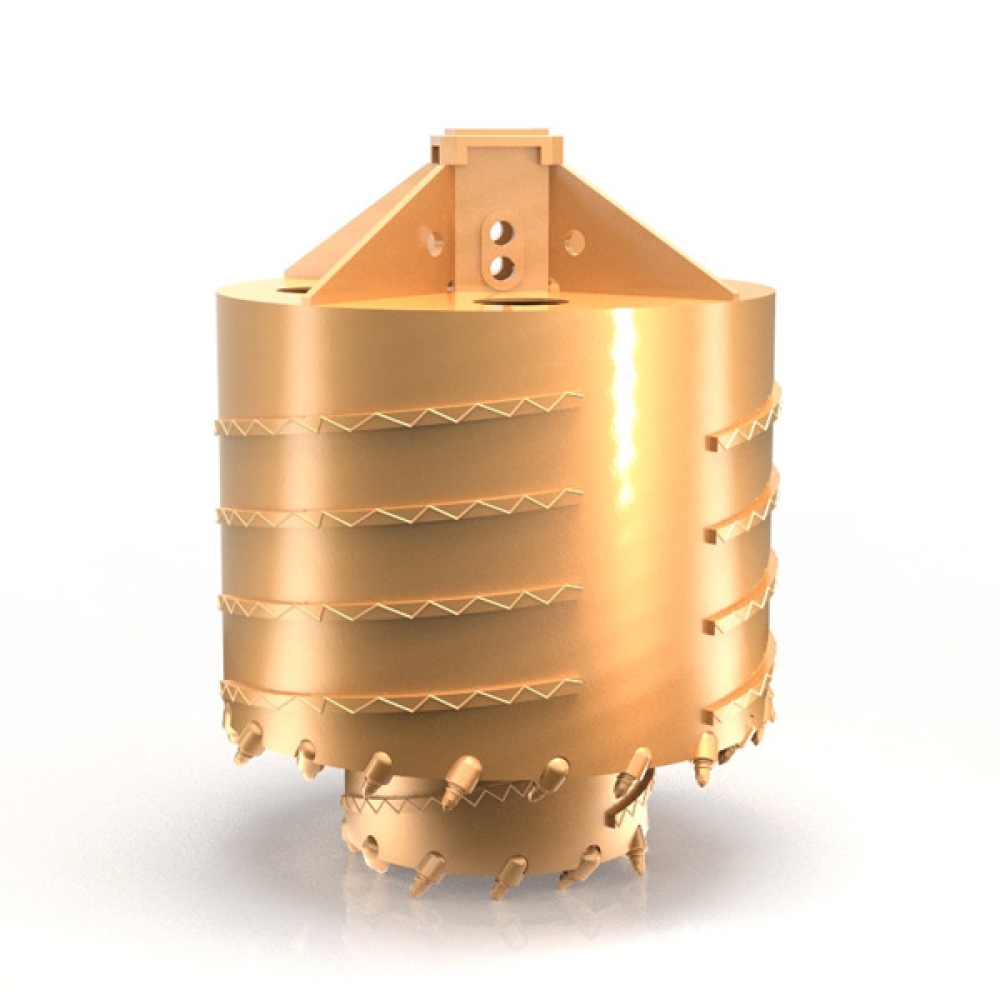

4.The small inner core barrel facilitates the coring operation, the large outer barrel performs stage breaking.

Descriptions

1.Core barrels are used to cut an annular ring in rock or concrete or reinforced concrete.
2.The center core of the rock or concrete is usually crushed with rock auger. The most important advantage of a core barrel is that it assists to concentrate the torque and crowd force on a small ring of cutting teeth.

Technical Parameters

Core barrel with Doubel Shell
Model Cutting Dia.(mm) Outer Shell HIT Outer Shell OD Inner Shell HIT Inner Shell OD Shell THK Teeth N Weight(kgs)
SCTZ-100 Φ1000mm 1200mm 920mm 1500mm 520mm 20mm 21pcs 1150kg
SCTZ-120 Φ1200mm 1200mm 1120mm 1500mm 620mm 20mm 27pcs 1350kg
SCTZ-150 Φ1500mm 1200mm 1420mm 1500mm 720mm 20mm 33pcs 1750kg
SCTZ-160 Φ1600mm 1200mm 1520mm 1500mm 820mm 20mm 36pcs 1950kg
SCTZ-180 Φ1800mm 1000mm 1720mm 1200mm 920mm 20mm 42pcs 2350kg
SCTZ-200 Φ2000mm 800mm 1920mm 1000mm 1020mm 20mm 48pcs 2690kg
SCTZ-220 Φ2200mm 800mm 2120mm 1000mm 1120mm 20mm 51pcs 2950kg
SCTZ-250 Φ2500mm 800mm 2420mm 1000mm 1420mm 20mm 60pcs 3300kg
SCTZ-280 Φ2800mm 800mm 2720mm 1000mm 1420mm 20mm 66pcs 4000kg
SCTZ-300 Φ3000mm 800mm 2920mm 1000mm 1520mm 20mm 70pcs 4650kg
Customizable Items:
Other cutting diameters likeΦ950, Φ1050mm can be customized.
Shell HIT. can be customized, prolonged or shortened.
Key component reinforce can be strengthened.
Cutter can be customized, single cutter or double cutter.
Key box can be customized, 130*130,150*150,200*200 etc.
Bottom type can be customized, single bottom type or double bottom type.
Bottom opening system can be customized, half-automatic or manual mechanic bottom open system.
