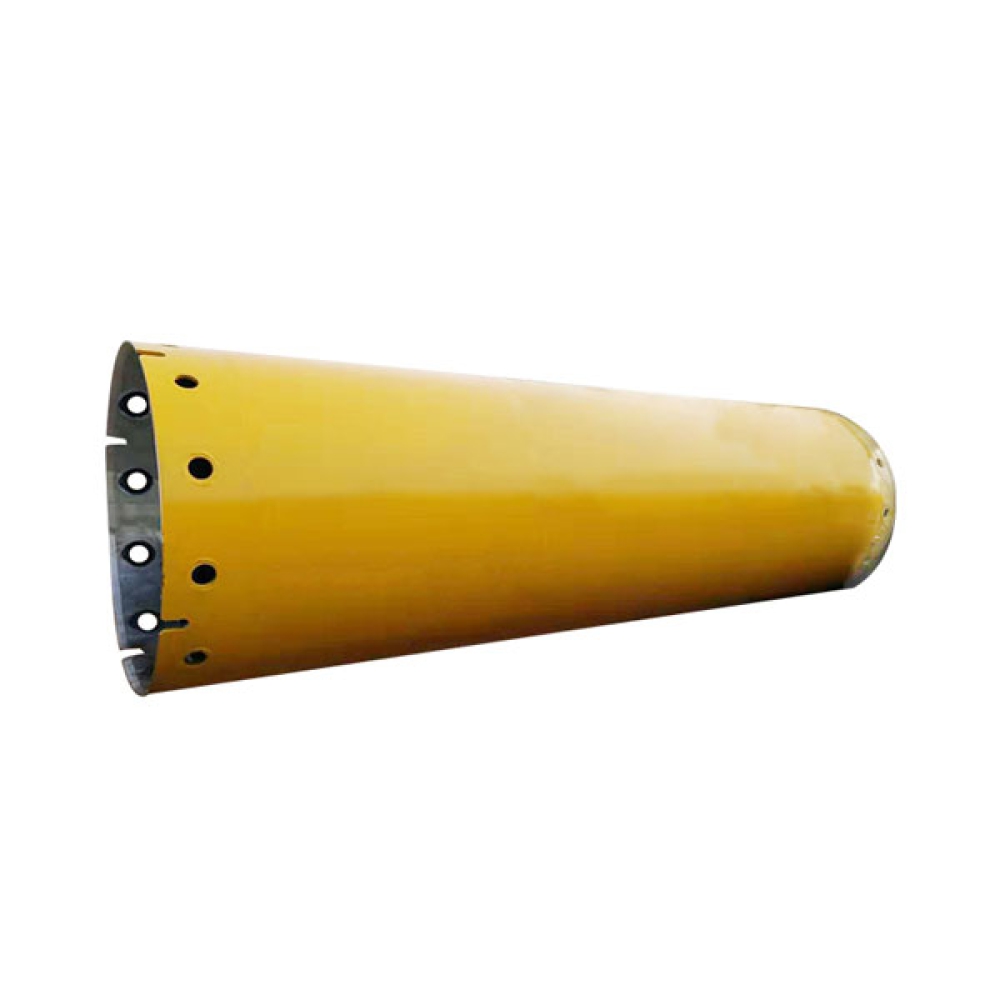

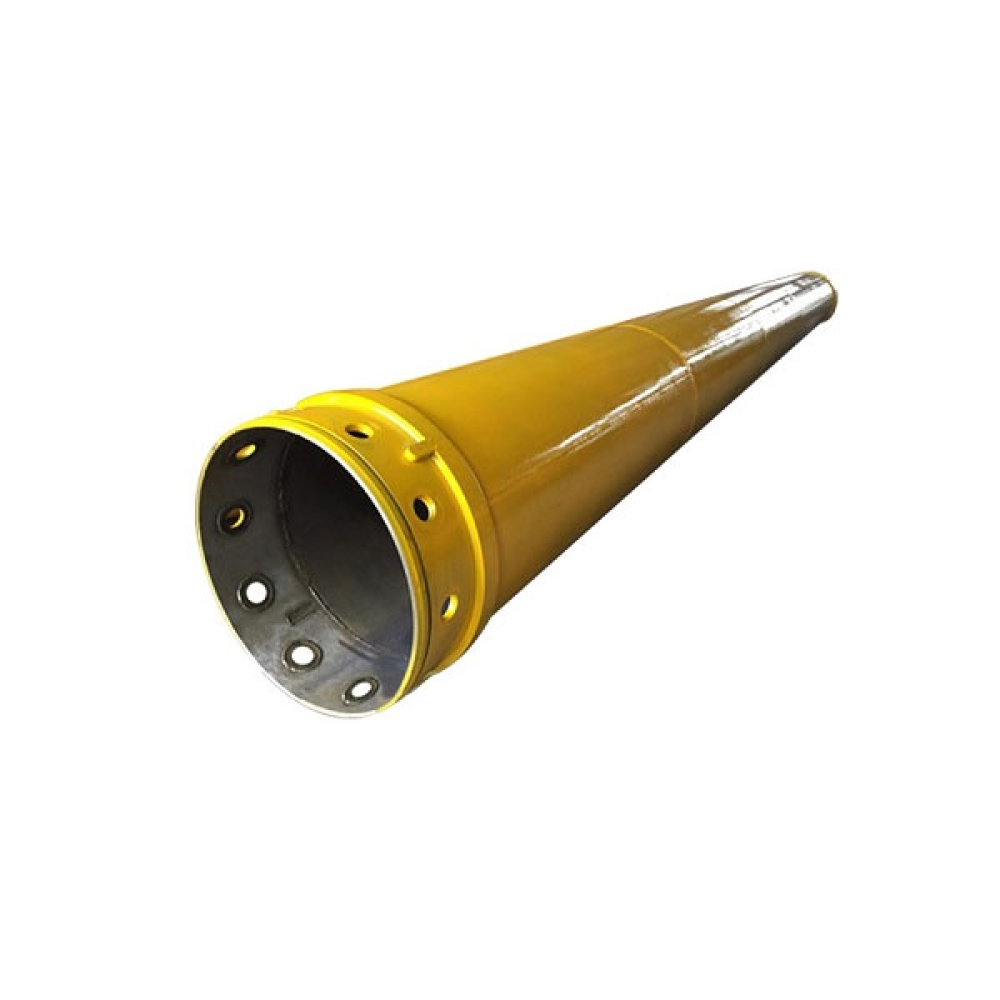

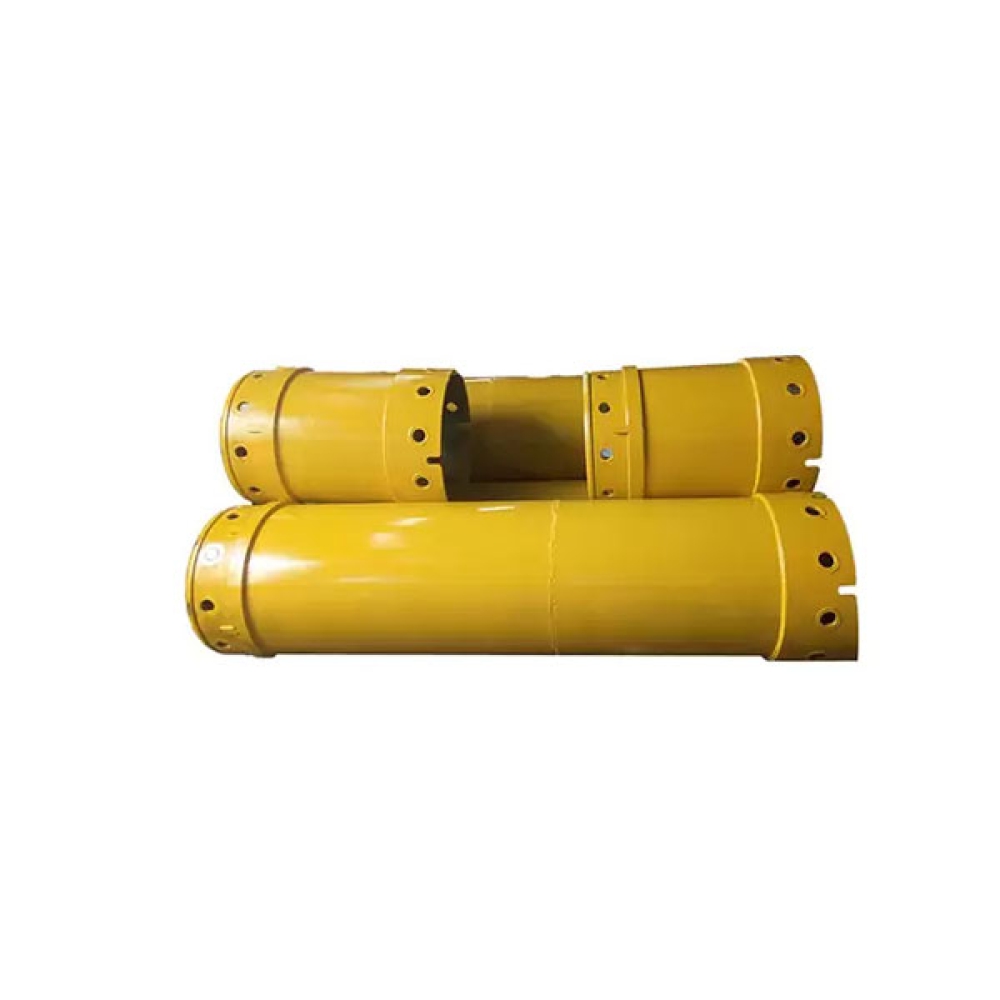

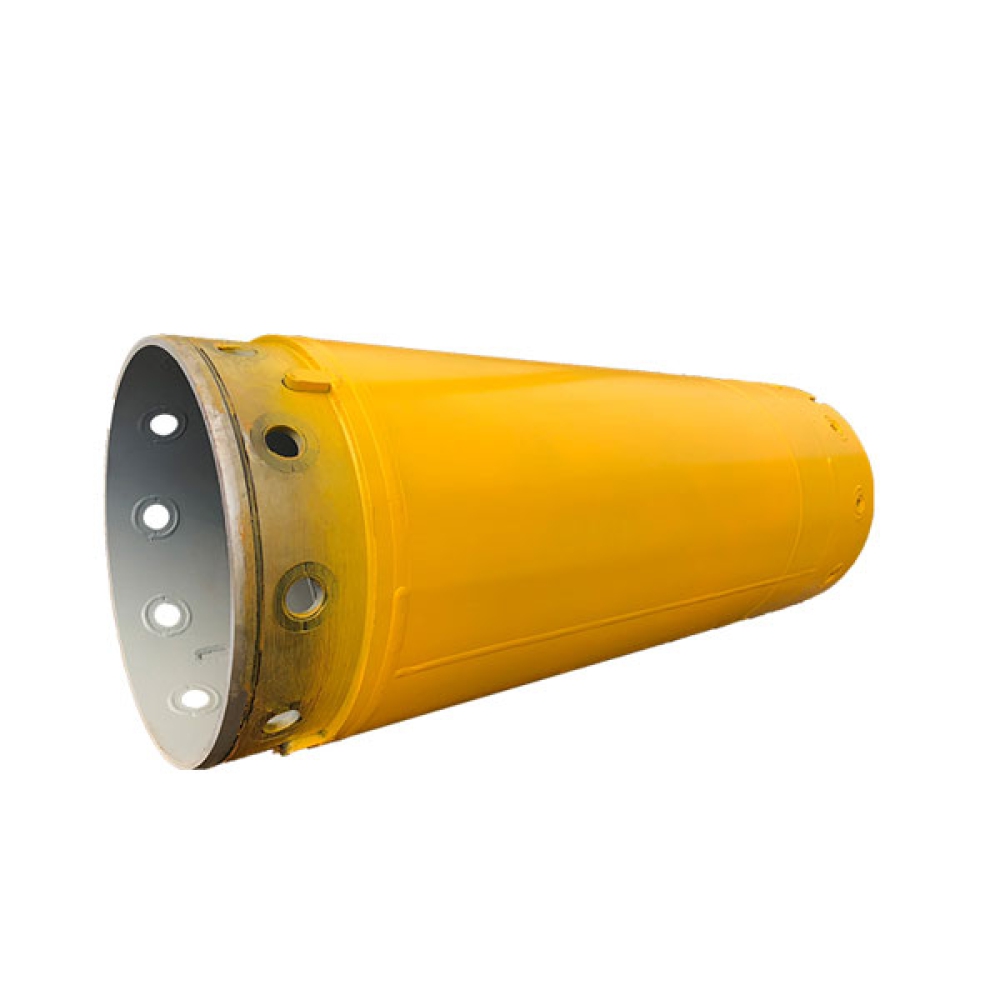

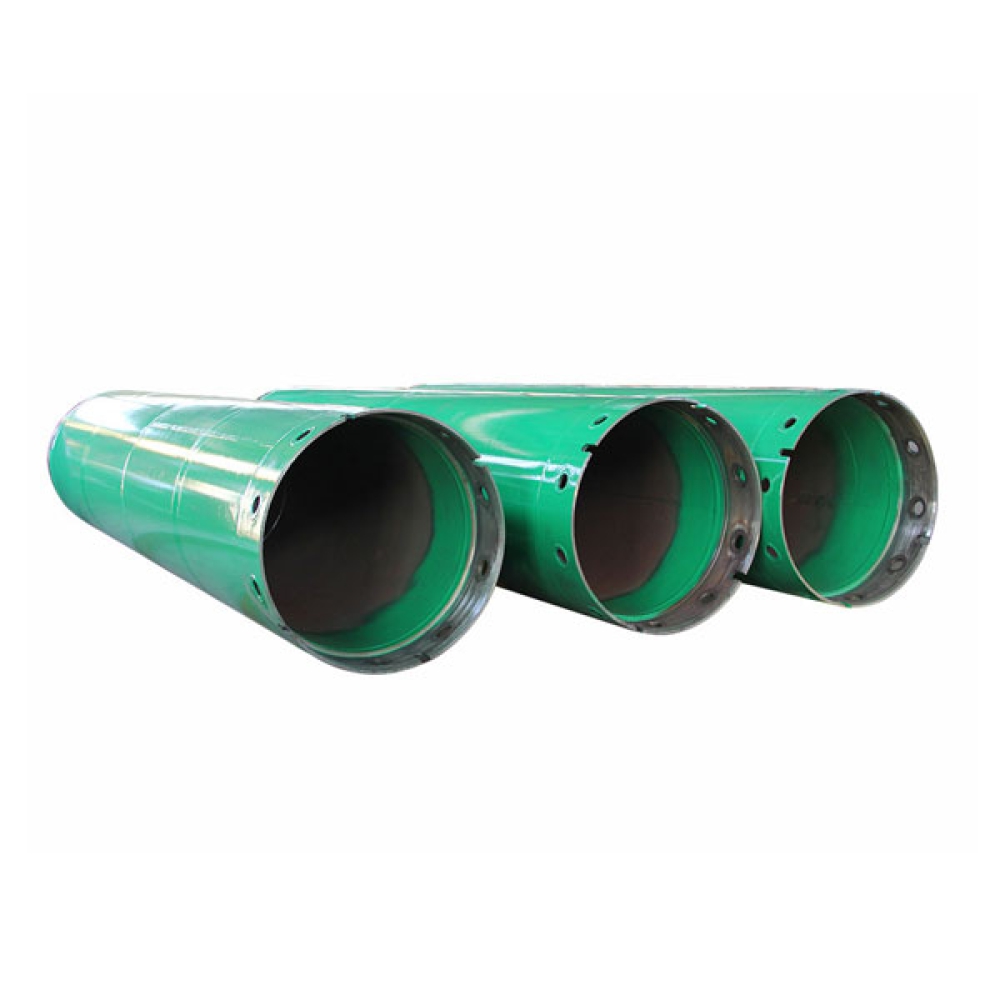

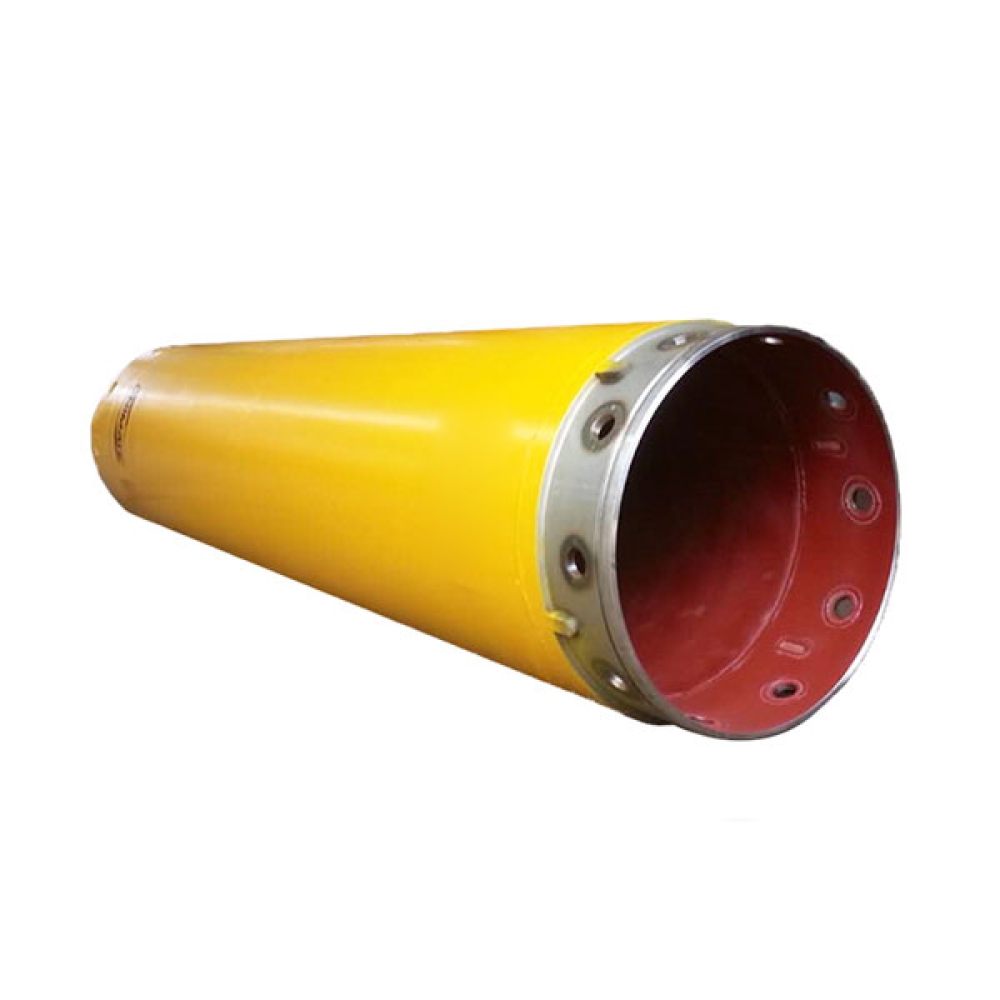

Single-wall Casing Tube

Applications:

1.For producing cased boreholes, especially for pile installation applying the rotary drilling method.

Features

1.The casings are made of double-wall pipes

2.Different casing section length from 1m to 6m optional

3.Casing connections on both side with female or male part and conical or threaded rings. Screw connections with seal and O-rings.

4.Custom-fit pipe connections for quick positioning and screwing together of pipes.

Descriptions

1.The casings are designed to perform cased holes, especially for the construction of bored piles by rotary drilling rigs.

2.The casing joint with high machining accuracy ensures a fast replacement and bolting of the casing as well as the best for force transmission effect.

Technical Parameters

Single-wall Casing Tube
Dia.	Length						Casing-wall THK-1	Casing-wall THK-2	Bolt QTY
D1/D2	1m	2m	3m	4m	5m	6m	A1	A2	bolts
(mm)	Weight(kg)						(mm)	(mm)	(pcs)
1300/1200	845	1475	2105	2735	3365	3395	20	40	12
1500/1400	1310	2675	3130	4040	4950	5860	25	50	12
1800/1700	1580	2675	3770	4865	5960	7055	25	50	16
2000/1880	2140	3355	4570	5785	7000	8215	25	50	12
2200/2080	2350	3690	5030	6370	7710	9050	25	60	12
2500/2380	2575	4100	5625	7150	8675	10200	25	60	16
