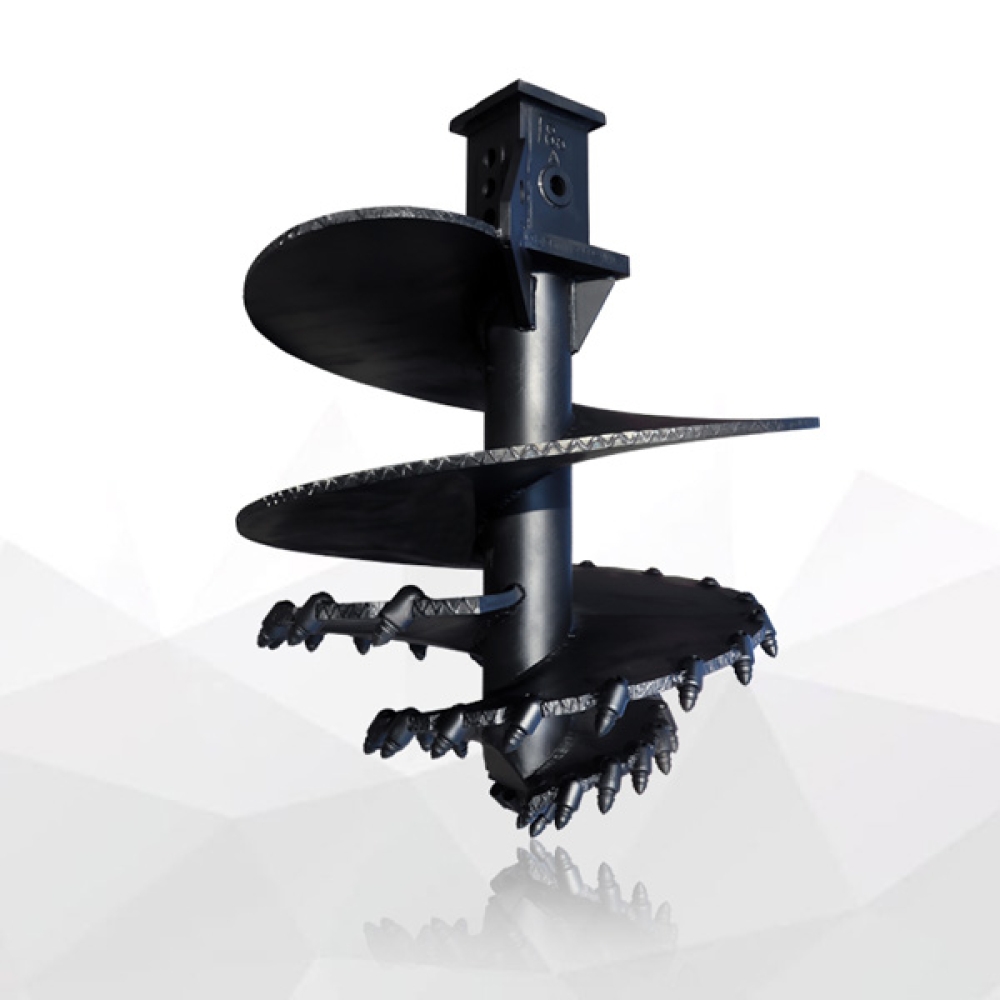

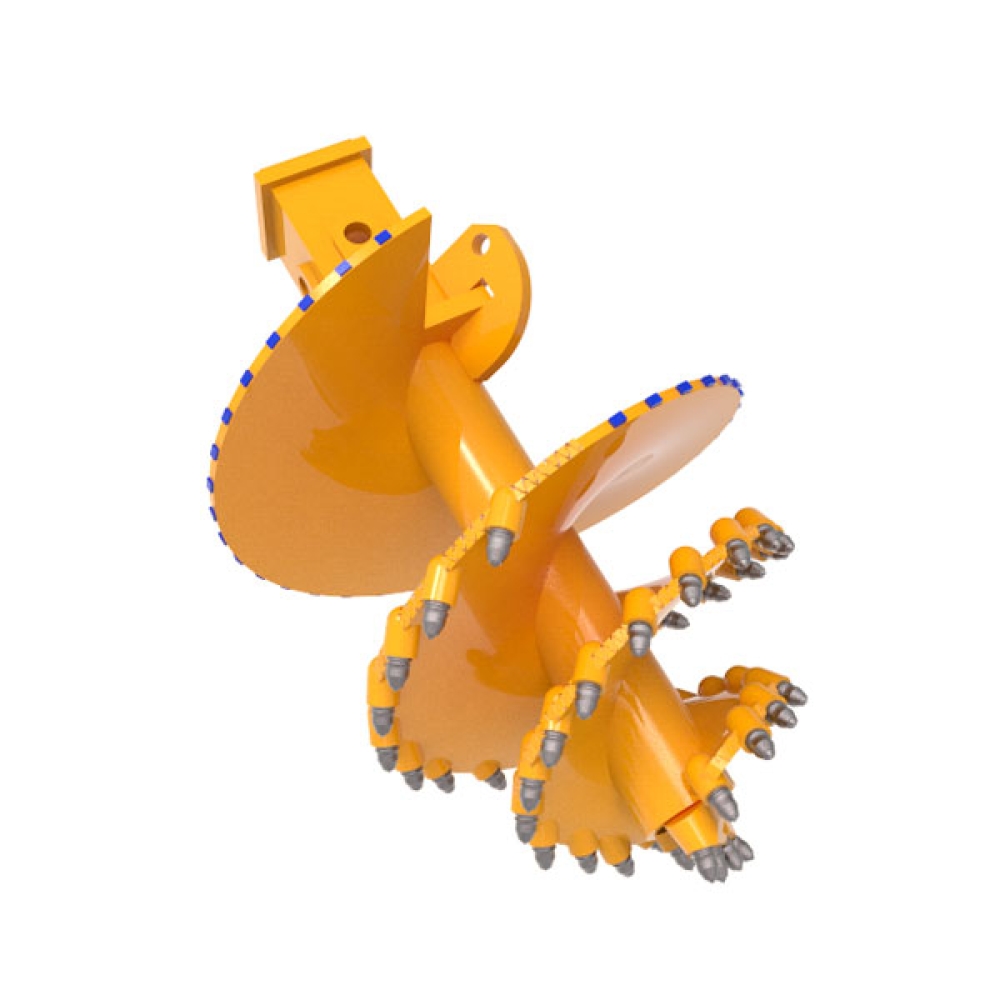

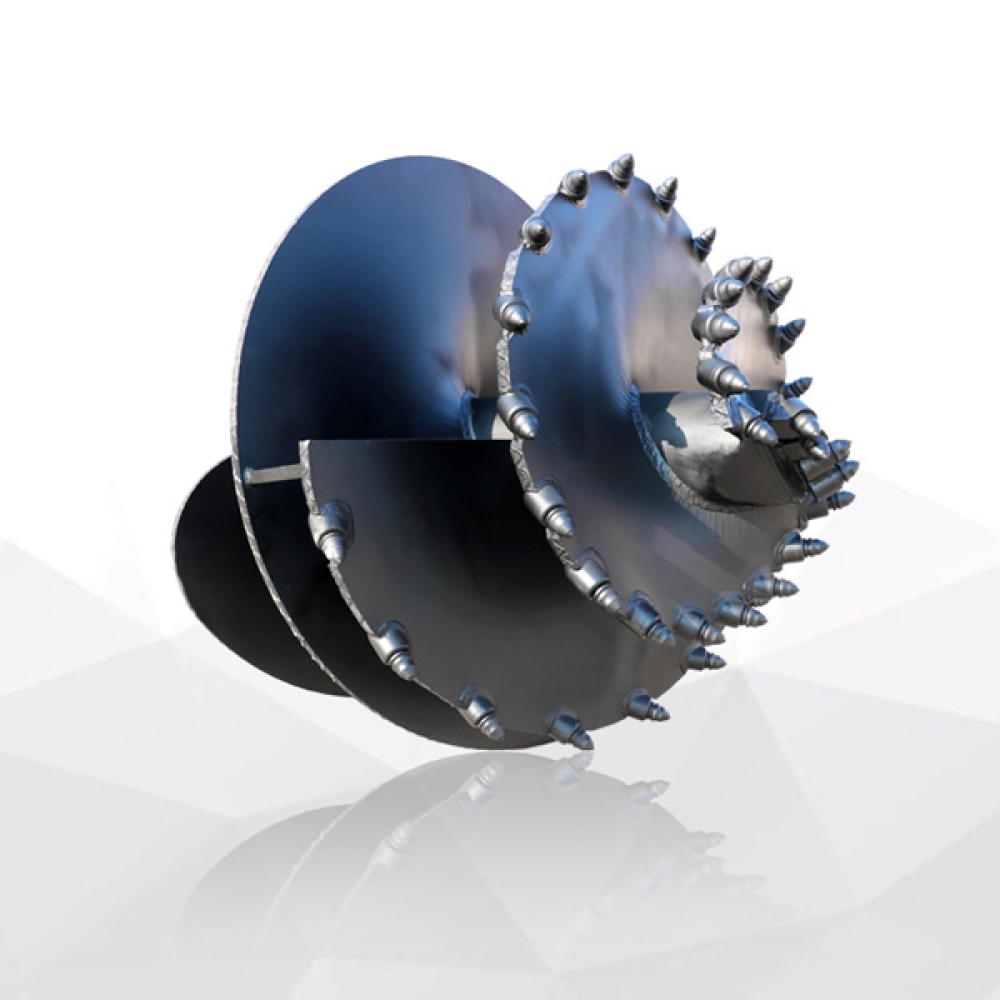

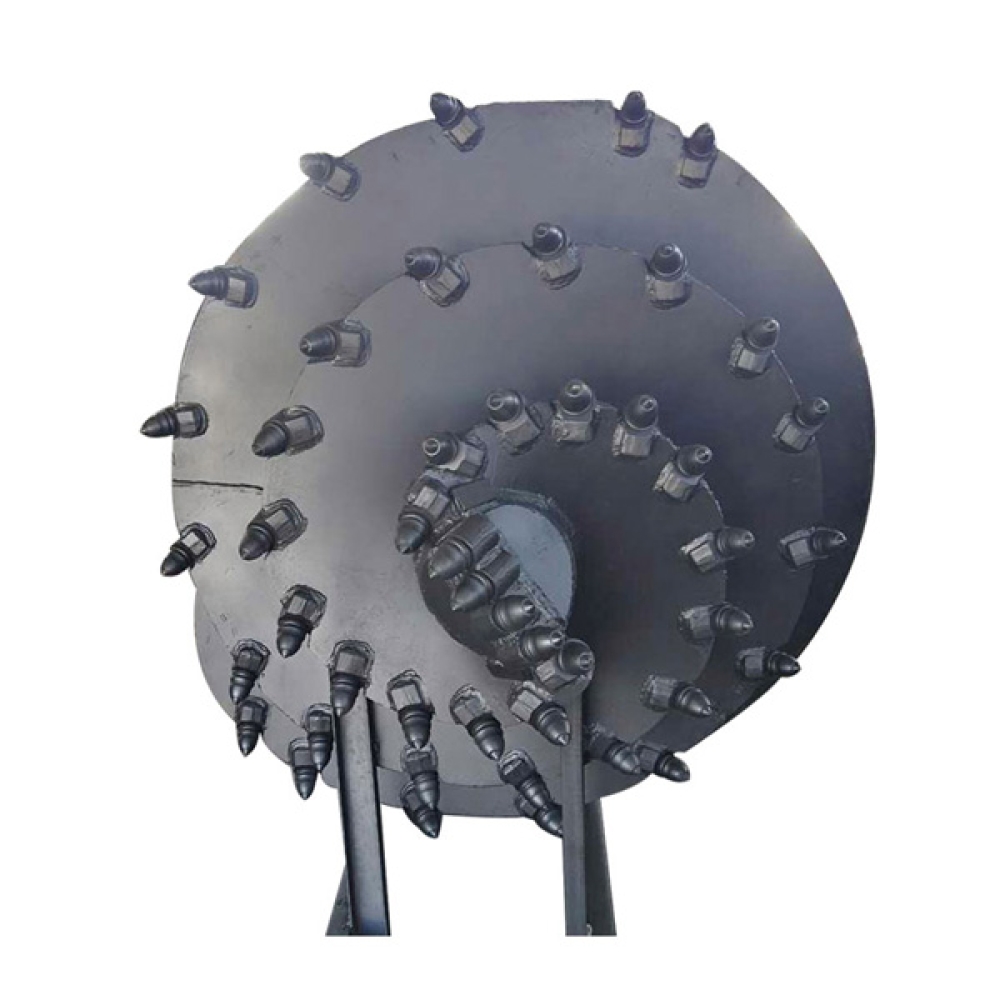

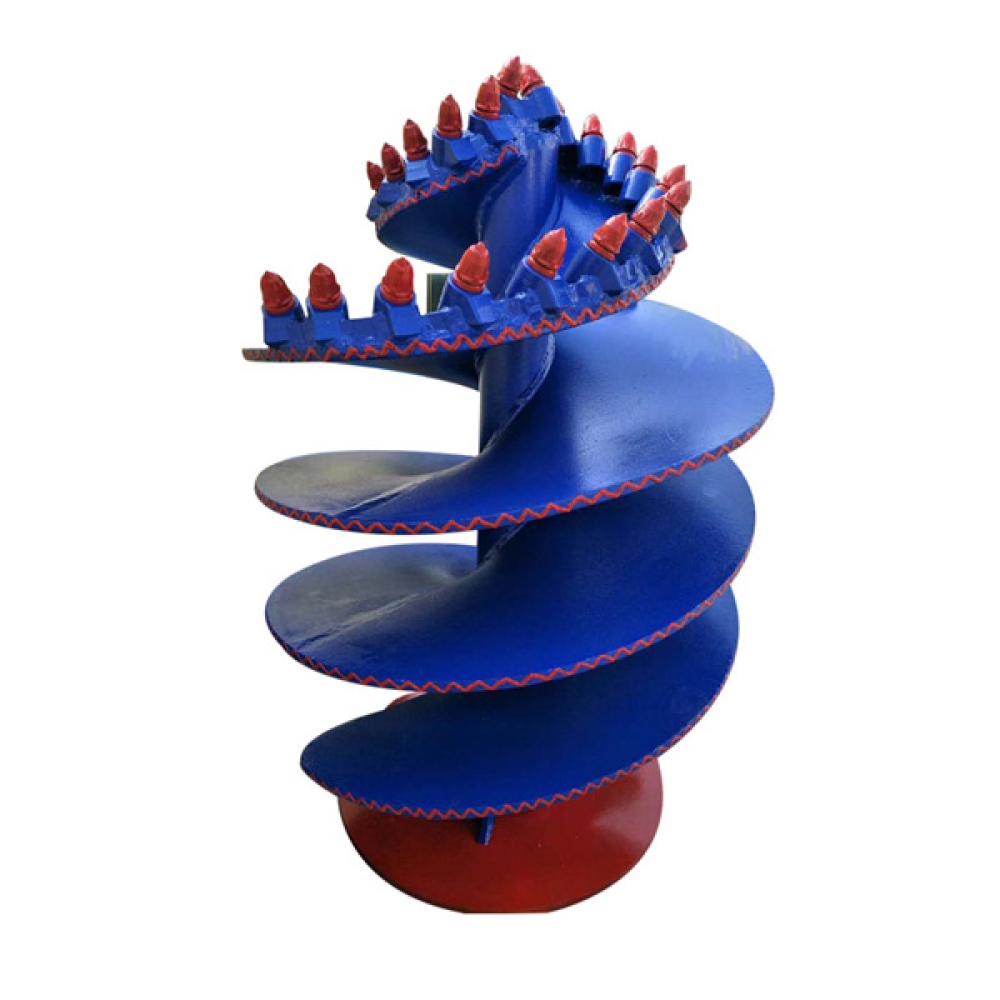

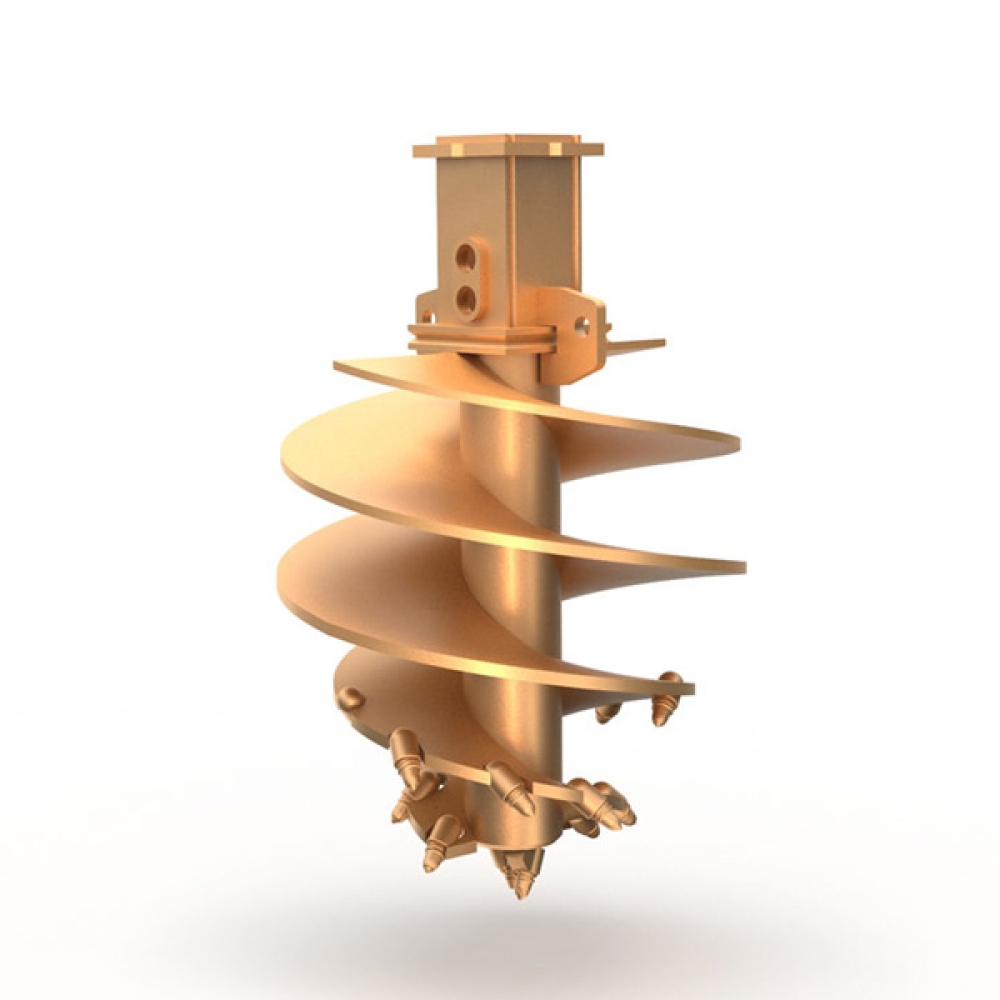

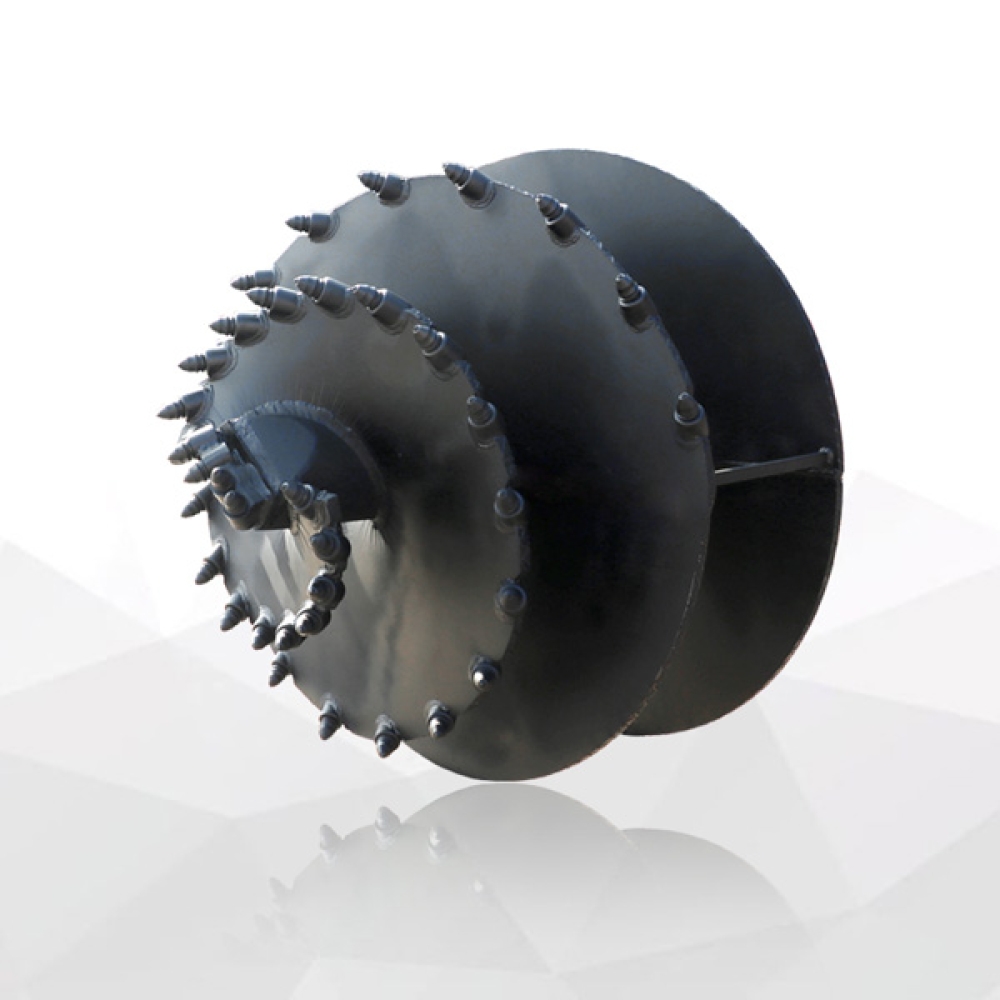

Conical Rock Auger

Applications:

1.Suitable for drilling in weak fractured rock and very dense sand and gravel (less than 5MPa).

2.Double cut augers are mainly used for bigger diameter uncased boreholes and secant piles.

3.Double cut auger without rock pilot are recommended for fractured rock or moderately weak to moderately strong rock(5~50MPa).

Features

1.Sturdy and wearable forging steel pilot for accurate positioning.

2.Hard facing strips on flights for wear protection.

3.Kelly box: 130mm,150mm,200mm(optional)

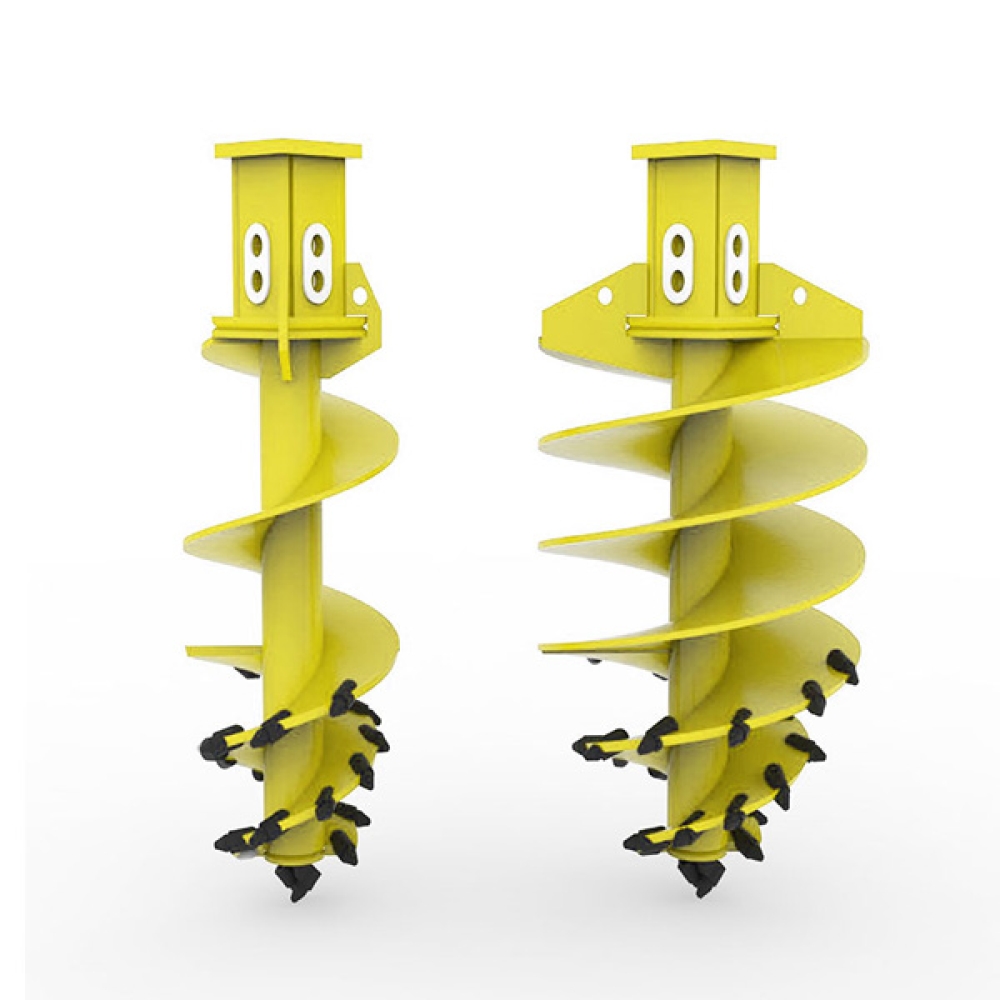

4.Both single cut conical rock auger and double cut conical rock auger available.

Descriptions

1.Augers have been designed for drilling in dry soil and in rock.

2.Various teeth configurations are available for different soil conditions. The geometry of the teeth arrangement is optimized for reaching excellent cutting performance.

3.For large drilling diameters or for the use in uncased bores, augers with double start head are recommended.

Technical Parameters

Conical Rock Auger

Model

Cutting Dia.(mm)

Spiral HIT

Spiral Pitch

Shell THK

Spiral OD

Cutter Tube OD

Teeth No

Weight(kgs)

LXZT-60

Φ600mm

1200mm

550-600mm

20+30mm

510mm

180mm

4pcs

535kg

LXZT-80

Φ800mm

1500mm

550-600mm

20+30mm

750mm

220mm

4pcs

750kg

LXZT-90

Φ900mm

1500mm

550-600mm

20+30mm

850mm

220mm

5pcs

820kg

LXZT-100

Φ1000mm

1500mm

550-600mm

20+30mm

950mm

220mm

6pcs

950kg

LXZT-120

Φ1200mm

1500mm

550-600mm

30+30mm

1150mm

220mm

6pcs

1050kg

LXZT-150

Φ1500mm

1500mm

550-600mm

30+30mm

1450mm

220mm

9pcs

1450kg

LXZT-160

Φ1600mm

1500mm

550-600mm

30+30mm

1550mm

220mm

10pcs

1650kg

LXZT-180

Φ1800mm

1500mm

550-600mm

30+30mm

1750mm

220mm

11pcs

1950kg

LXZT-200

Φ2000mm

1500mm

550-600mm

40+40mm

1950mm

220mm

12pcs

2300kg

LXZT-220

Φ2200mm

1500mm

550-600mm

40+40mm

2150mm

220mm

14pcs

2500kg

LXZT-250

Φ2800mm

1500mm

550-600mm

40+40mm

2450mm

220mm

16pcs

3100kg

Customizable Items:

Other cutting diameters likeΦ950, Φ1050mm can be customized.

Shell HIT. can be customized, prolonged or shortened.

Key component reinforce can be strengthened.

Cutter can be customized, single cutter or double cutter.

Key box can be customized, 130*130,150*150,200*200 etc.

Bottom type can be customized, single bottom type or double bottom type.

Bottom opening system can be customized, half-automatic or manual mechanic bottom open system.
